As Pangolin environments grow, managing resource and access changes only in the dashboard can add operational overhead. New environments get added, existing ones change direction, and policies can drift from the original intent.
GitOps is the practice of keeping operational state in version control and applying that state through automation. For Pangolin, that means storing blueprints in Git and letting CI apply them instead of treating the dashboard as the source of truth.
That gives teams a few practical benefits immediately:
The important pattern is simple:
That turns Git into the source of truth for exposure intent and access state.

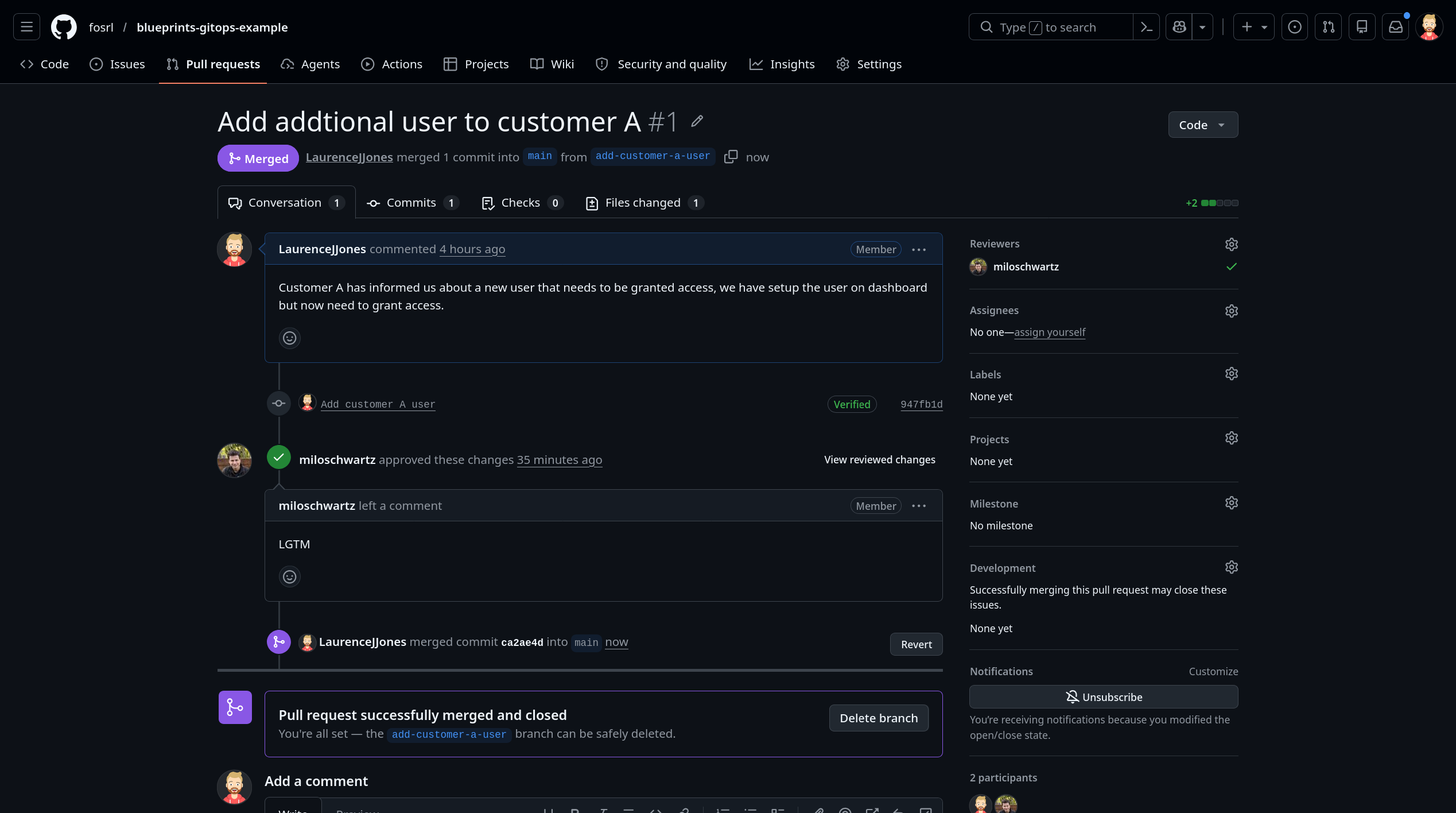

If a target changes, a domain changes, or a user list changes, the reviewer can see that change in the same pull request as the rest of the operational change. That is a much better model than changing infrastructure in one place and fixing Pangolin later in a dashboard.
One common layout looks like this:
pangolin-gitops/
├─ blueprints/
│ ├─ customer-a.yaml
│ └─ customer-b.yaml
└─ .github/workflows/apply-blueprints.ymlThat is only one way to structure it. Some teams keep blueprints with application code, but a separate GitOps repo is often cleaner when Pangolin definitions are shared operational state managed by platform or infrastructure teams.
In Pangolin, a blueprint is a declarative definition for resources and their settings. For this workflow, YAML is the useful format because it sits naturally in Git and can be applied from CI. For the broader feature, see Blueprints.
The important part is not that the file is YAML. The important part is that it captures the intended state:
That is the information teams often leave split across deployment notes, dashboard settings, and memory. A blueprint pulls it back into one reviewable file.

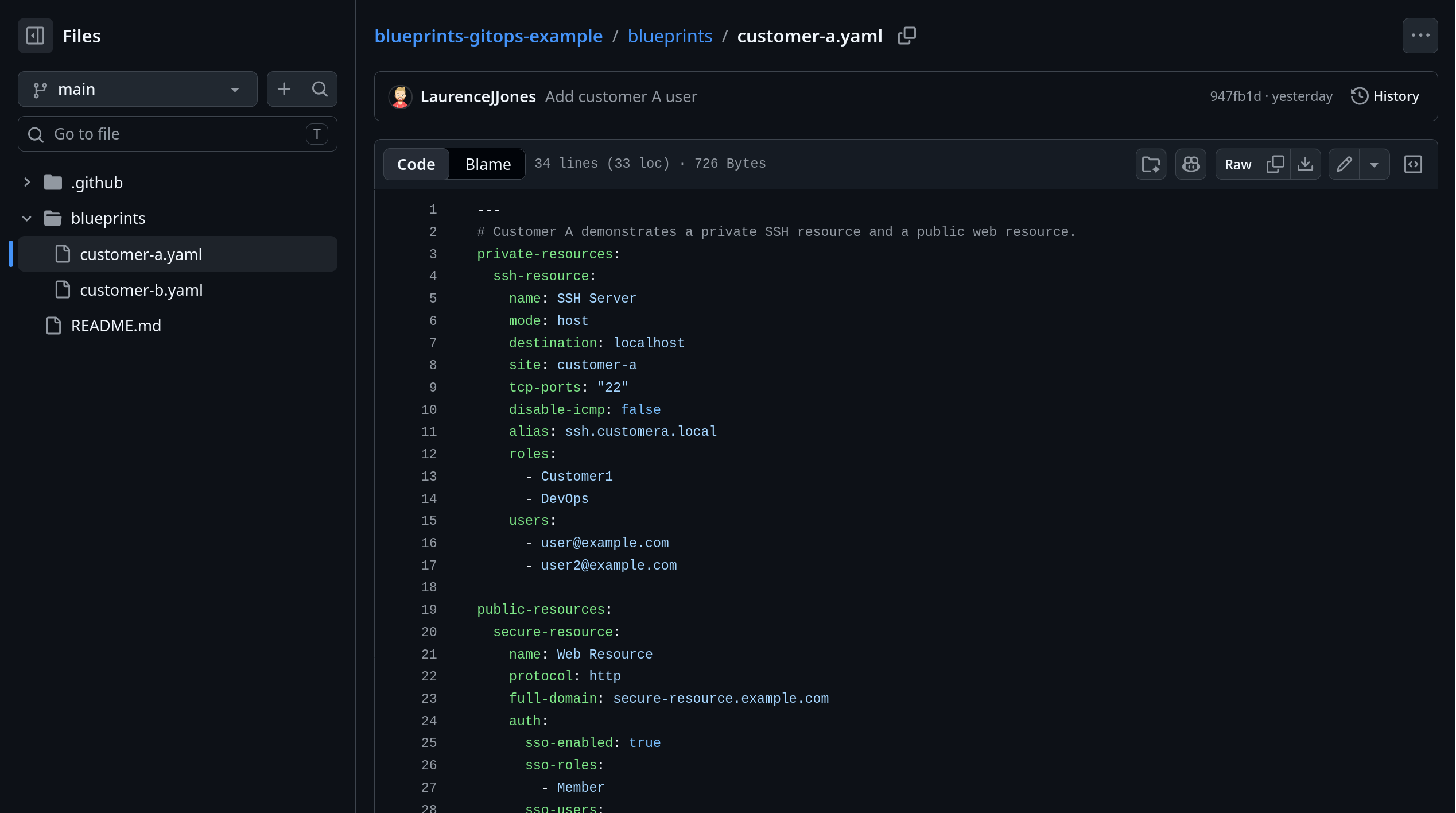

Suppose one customer environment needs both a private connectivity path and a published web service. The same blueprint can define both.
private-resources:
ssh-resource:
name: SSH Server
mode: host
destination: localhost
site: customer-a
tcp-ports: "22"
disable-icmp: false
alias: ssh.example.local
roles:
- Customer1
- DevOps
users:
- user@example.com
public-resources:
secure-resource:
name: Web Resource
protocol: http
full-domain: secure-resource.example.com
auth:
sso-enabled: true
sso-roles:
- Member
sso-users:
- user@example.com
targets:
- site: customer-a
hostname: localhost
method: http
port: 8080This file is doing real work:
Without a blueprint, teams usually make those changes directly in the dashboard. With a blueprint, the same changes live in version control and move through review first.
Once blueprint.yaml is in a GitOps repo, GitHub Actions becomes the apply step that keeps Pangolin aligned with the reviewed state.
The sequence is straightforward:
That means Pangolin stops being a manual follow-up step after an environment change. It becomes part of the CI workflow itself.
At a minimum, the workflow needs to check out the repo and apply the blueprint with the new non-interactive CLI flags.
name: Apply Pangolin blueprint
on:
push:
branches:
- main
jobs:
apply:
runs-on: ubuntu-latest
steps:
- name: Check out repository
uses: actions/checkout@v4
- name: Install Pangolin CLI
run: curl -fsSL https://static.pangolin.net/get-cli.sh | bash
- name: Apply Pangolin blueprint
env:
PANGOLIN_INTEGRATION_API_KEY: ${{ secrets.PANGOLIN_INTEGRATION_API_KEY }}
PANGOLIN_ENDPOINT: ${{ secrets.PANGOLIN_ENDPOINT }}
PANGOLIN_ORG_ID: ${{ secrets.PANGOLIN_ORG_ID }}
run: |
pangolin apply blueprint \
--api-key "$PANGOLIN_INTEGRATION_API_KEY" \
--endpoint "$PANGOLIN_ENDPOINT" \
--org "$PANGOLIN_ORG_ID" \
--file ./blueprints/customer-a.yamlThe rest of the infrastructure workflow will vary by team. The useful boundary is that the blueprint gets applied from the same reviewed Git state that approved the access change.
Keep the secret-handling boring:
The dashboard is useful, but it is a weak source of truth for Git-managed environment and access changes.
If environment changes happen in Git while Pangolin changes happen somewhere else, reviewers do not get one clear picture of intent. A hostname change, target change, or access-list change is not cosmetic. It changes what is exposed and who can reach it.
Putting that in a blueprint gives you a cleaner workflow:
If changing access means editing one file in the GitOps repo and letting CI apply it, precise resource changes stay realistic. If the alternative is another set of manual dashboard steps every time a target or user list changes, drift keeps growing.
Pangolin is easier to review at scale when blueprint state lives in Git and CI applies it consistently.
Blueprints and GitHub Actions give you a cleaner path. Keep blueprint.yaml in a GitOps repo. Review the environment and exposure changes together. Apply them together.
That does not eliminate access management work. It does put that work back inside a normal Git-managed workflow, which is usually where it belonged all along.
What is a Pangolin blueprint?
A Pangolin blueprint is a declarative configuration for resources and their settings. In practice, it lets you manage exposure and access settings as code instead of only through the dashboard.
Should blueprint.yaml live in a dedicated GitOps repo?
Usually yes, if Pangolin state is owned by platform or infrastructure workflows. The important part is that it lives in version control and moves through the same review and CI path as the change it belongs to. Some teams still keep it with application code, but that is an implementation choice, not the core requirement.
Can GitHub Actions apply Pangolin blueprints automatically?
Yes. Pangolin supports applying blueprints through the CLI with non-interactive flags for API key, endpoint, and org ID, which makes the workflow a good fit for CI/CD.
Are blueprints better than managing everything in the dashboard?
For teams that want reviewability, version history, and automation, usually yes. The dashboard still has value, but blueprints are the better fit when Git should be the source of truth.
Can I keep Pangolin blueprints outside the app repo?
Yes. This guide assumes a dedicated GitOps repo because that is often the cleaner model for platform and infrastructure teams. Keeping the blueprint with application code is also possible if that matches your operating model better.
Do blueprints replace access design?
No. They make access design easier to preserve operationally. Teams still need to decide what should be exposed and who should be allowed to reach it.
